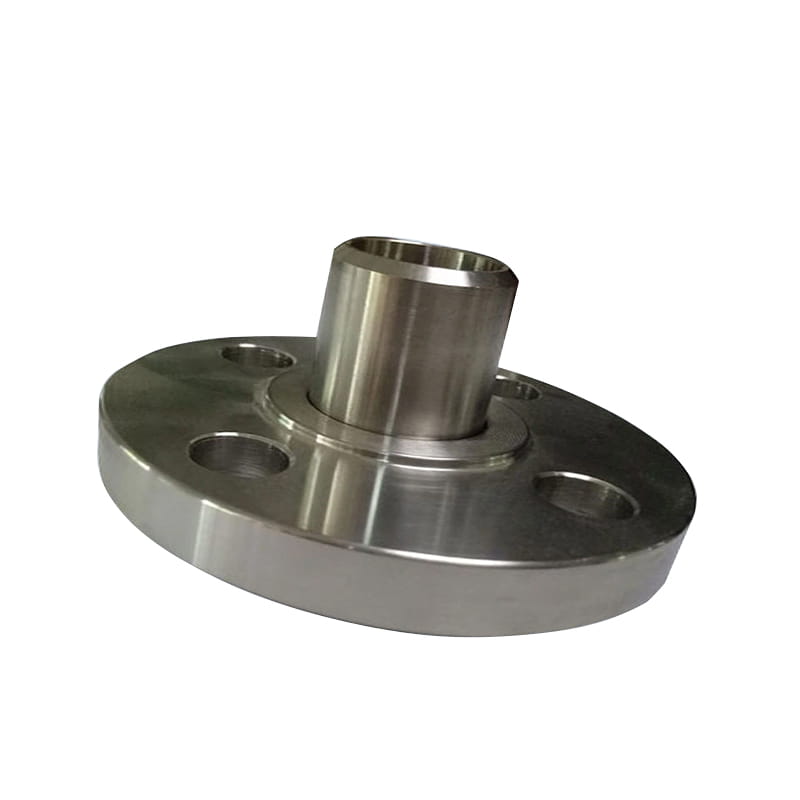

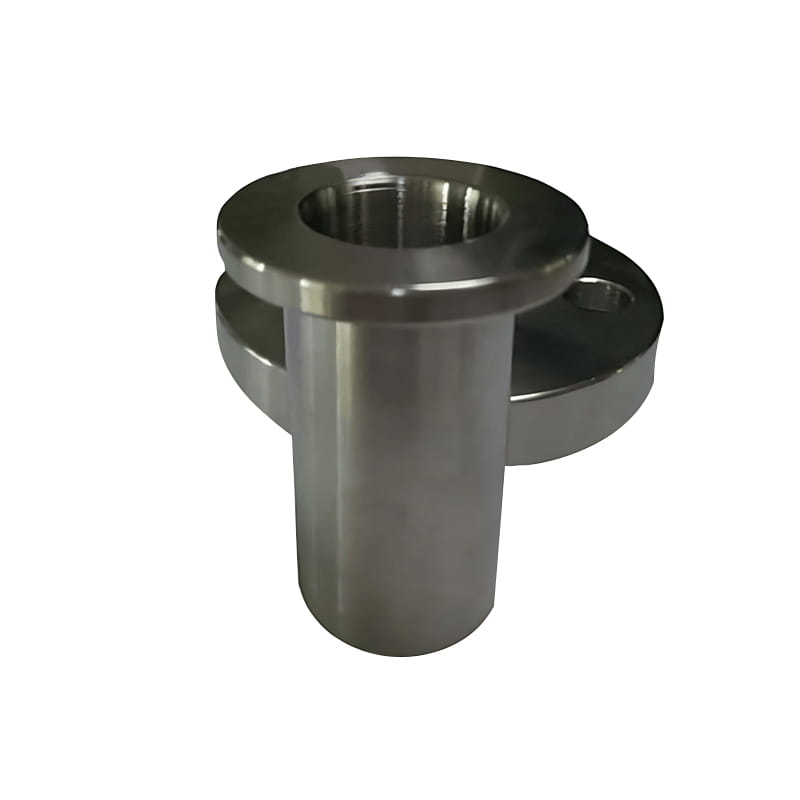

Flensa sambungan pangkuan adalah rakitan dua segmen, dengan ujung rintisan yang memiliki flensa cincin pangkuan di atasnya. Ujung rintisan kemudian dilas ke pipa, dan cincin flensa dapat diputar untuk sejajar dengan flensa kawin.

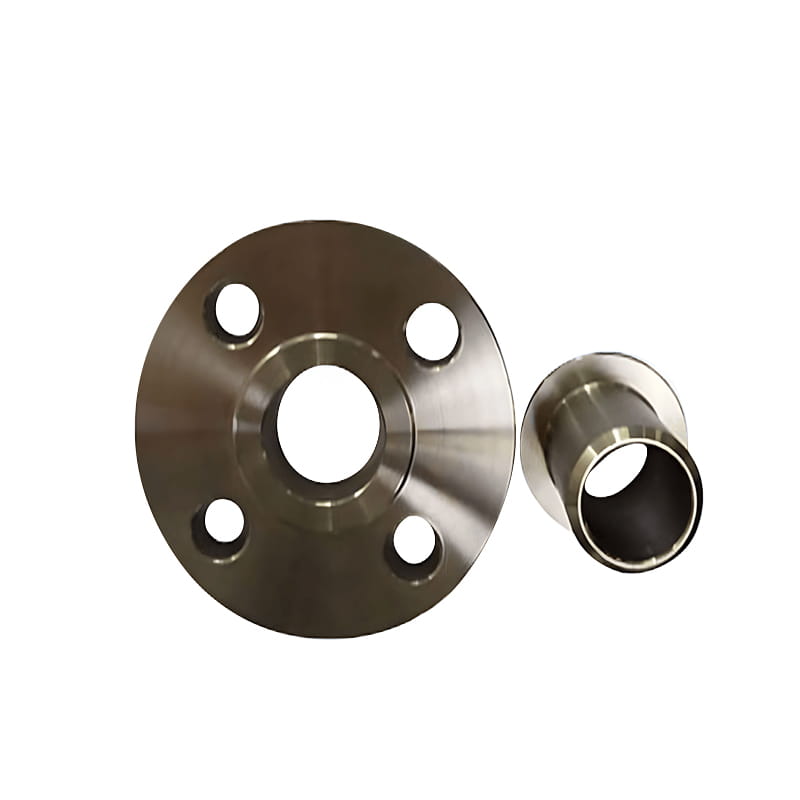

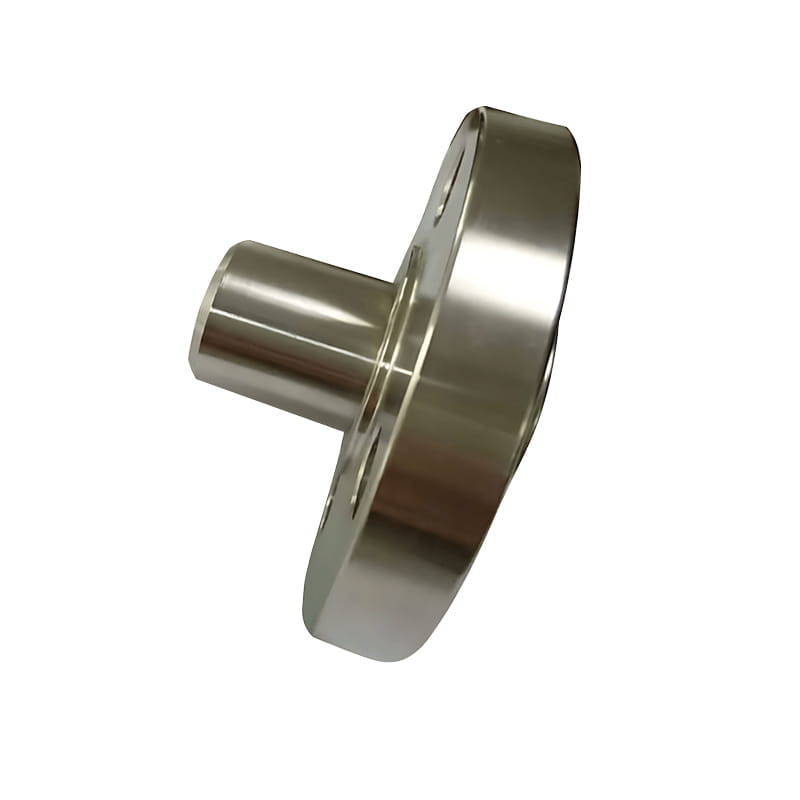

Ujung rintisan dapat dilihat sebagai panjang lengan pipa dengan satu ujung pantat yang dilas dan ujung lainnya berkobar di sudut kanan ke sumbu pipa. Flensa sambungan pangkuan dan ujung stub menyusun koneksi sambungan pangkuan komposit dua potong.
Flensa ini hampir identik dengan "flensa slip" kecuali jari -jari di persimpangan permukaan flensa dan lubang untuk mengakomodasi bagian bergelang ujung rintisan. Kemampuan penahan tekanan mereka sedikit lebih baik daripada "slip on flange". Namun, kehidupan kelelahan hanya sepersepuluh dari "flensa leher pengelasan".
Flang sambungan pangkuan tergelincir di atas pipa, dan tidak dilas atau diikat ke sana. Mereka adalah jenis perakitan flensa yang biasa digunakan dalam sistem atau aplikasi bertekanan rendah di mana seringnya pembongkaran mungkin diperlukan.
Perkenalan
| Standar | ANSI B16.5, ANSI B16.36, ANSI B16.47, EN1092, UNI 2277/2278, ANSI B16.48, JIS, BS 4504, DIN, SABS1123, GOST-12820 |
| Bahan | Baja tahan karat, baja karbon, baja paduan, nikel cupro (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nikel (200/20), Monel (400 & K500), Inconel (600, 601, 625 & 825 & 825), 800 H (600 H (600 H (600 H (600, 6001, 625, SS 904L, Titanium (1 & 2) dll. |
| Permukaan | Minyak Anti-Rust, Lukisan (Hitam, Kuning), Galvanisasi, Pelapis Daya |
| Jenis | Forging, pemrosesan CNC |
| ukuran | ½ inci - 24 inci |
| Waktu pengiriman | Dalam 5-30 hari setelah menerima prabayar |
| Sedang mengemas | Palet kayu lapis, palet kayu, kotak kayu, dll. |
| Aplikasi | Tenaga listrik, ladang minyak, pembuatan kapal, lepas pantai, sistem air, gas alam, proyek pipa, dll. |

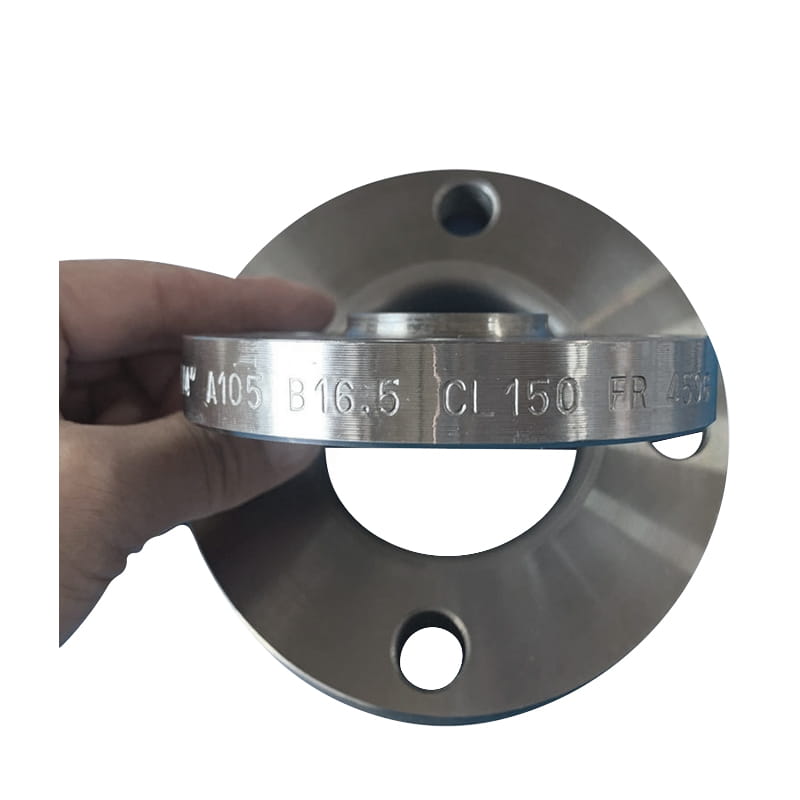

Kelas 150 lb

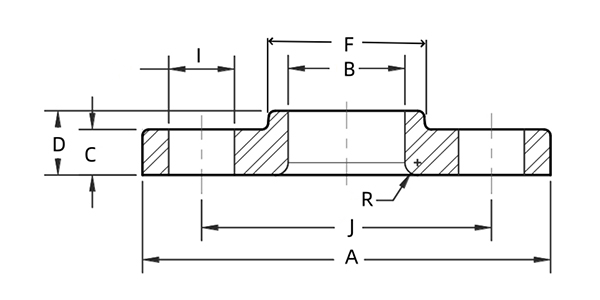

| Nomdi dalamal Ukuran pipa | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Flens Ketebalan | Keseluruhan Panjang | Pangkuan Radius | Pusat Diameter | Nomor lubang | Lubang baut Diameter | Diameter ldi dalamgkaran lubang | Berat |
| di dalam | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | Hmm) | I (mm) | J (mm) | kg/ potong |
| ½ | 21.30 | 88.90 | 22.90 | 11.20 | 15.70 | 3.00 | 30.20 | 4 | 15.70 | 60.45 | 0.38 |
| ¾ | 26.70 | 98.60 | 28.20 | 12.70 | 15.70 | 3.00 | 38.10 | 4 | 15.70 | 69.85 | 0.55 |
| 1 | 33.40 | 108.00 | 35.10 | 14.20 | 17.50 | 3.00 | 49.30 | 4 | 15.70 | 79.25 | 0.76 |
| 1 ¼ | 42.20 | 117.30 | 43.70 | 15.70 | 20.60 | 4.80 | 58.70 | 4 | 15.70 | 88.90 | 1.01 |
| 1 ½ | 48.30 | 127.00 | 50.00 | 17.50 | 22.40 | 6.40 | 65.00 | 4 | 15.70 | 98.60 | 1.30 |
| 2 | 60.30 | 152.40 | 62.50 | 19.10 | 25.40 | 7.90 | 77.70 | 4 | 19.10 | 120.70 | 2.03 |
| 2 ½ | 73.00 | 177.80 | 75.40 | 22.40 | 28.40 | 7.90 | 90.40 | 4 | 19.10 | 139.70 | 3.25 |
| 3 | 88.90 | 190.50 | 91.40 | 23.90 | 30.20 | 9.70 | 108.00 | 4 | 19.10 | 152.40 | 3.81 |
| 3 ½ | 101.60 | 215.90 | 104.10 | 23.90 | 31.75 | 9.70 | 122.20 | 8 | 19.10 | 177.80 | 4.76 |
| 4 | 114.30 | 228.60 | 116.80 | 23.90 | 33.30 | 11.20 | 134.90 | 8 | 19.10 | 190.50 | 5.25 |
| 5 | 141.30 | 254.00 | 114.50 | 23.90 | 36.60 | 11.20 | 163.60 | 8 | 22.40 | 215.90 | 6.02 |
| 6 | 168.30 | 279.40 | 171.50 | 25.40 | 39.60 | 12.70 | 192.00 | 8 | 22.40 | 241.30 | 7.40 |
| 8 | 219.10 | 342.90 | 222.30 | 28.40 | 44.50 | 12.70 | 246.10 | 8 | 22.40 | 298.50 | 12.10 |
| 10 | 273.00 | 406.40 | 277.40 | 30.20 | 49.30 | 12.70 | 304.80 | 12 | 25.40 | 362.00 | 16.40 |
| 12 | 323.80 | 482.60 | 328.20 | 31.75 | 55.60 | 12.70 | 365.30 | 12 | 25.40 | 431.80 | 26.10 |
| 14 | 355.60 | 533.40 | 360.20 | 35.10 | 79.25 | 12.70 | 400.10 | 12 | 28.40 | 476.30 | 34.50 |
| 16 | 406.40 | 596.90 | 411.20 | 36.60 | 87.40 | 12.70 | 457.20 | 16 | 28.40 | 539.80 | 44.60 |
| 18 | 457.20 | 635.00 | 462.30 | 39.60 | 96.80 | 12.70 | 505.00 | 16 | 31.75 | 577.90 | 48.70 |
| 20 | 508.00 | 698.50 | 514.40 | 42.90 | 103.10 | 12.70 | 558.80 | 20 | 31.75 | 635.00 | 61.60 |
| 24 | 609.60 | 812.80 | 616.00 | 47.80 | 111.30 | 12.70 | 663.40 | 20 | 35.10 | 749.30 | 86.60 |
Kelas 300 lb
| Nomdi dalamal Ukuran pipa | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Flens Ketebalan | Keseluruhan Panjang | Pangkuan Radius | Pusat Diameter | Nomor lubang | Lubang baut Diameter | Diameter ldi dalamgkaran lubang | Berat |
| di dalam | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | Hmm) | I (mm) | J (mm) | kg/ potong |
| ½ | 21.30 | 95.20 | 22.90 | 14.20 | 22.30 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.62 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.70 | 4 | 19.00 | 82.50 | 1.10 |
| 1 | 33.40 | 123.90 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.00 | 88.90 | 1.33 |
| 1 ¼ | 42.20 | 133.30 | 43.70 | 19.00 | 26.90 | 4.80 | 63.50 | 4 | 19.00 | 98.50 | 1.65 |
| 1 ½ | 48.30 | 155.4 | 50.00 | 20.60 | 30.20 | 6.40 | 69.85 | 4 | 22.30 | 114.30 | 2.44 |
| 2 | 60.30 | 165.10 | 62.50 | 22.30 | 33.20 | 7.90 | 84.00 | 8 | 19.10 | 127.00 | 2.83 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 25.40 | 38.10 | 7.90 | 100.00 | 8 | 22.30 | 149.30 | 4.25 |
| 3 | 88.90 | 209.50 | 91.40 | 28.40 | 42.90 | 9.70 | 117.30 | 8 | 22.30 | 168.10 | 5.78 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 30.20 | 44.40 | 9.70 | 133.30 | 8 | 22.30 | 184.10 | 7.27 |
| 4 | 114.30 | 254.00 | 116.80 | 31.70 | 47.70 | 11.20 | 146.00 | 8 | 22.30 | 200.10 | 9.55 |
| 5 | 141.30 | 279.40 | 114.50 | 35.00 | 50.80 | 11.20 | 177.80 | 8 | 22.30 | 234.90 | 12.20 |
| 6 | 168.30 | 317.50 | 171.50 | 36.50 | 52.30 | 12.70 | 206.20 | 12 | 22.30 | 267.70 | 15.50 |
| 8 | 219.10 | 381.00 | 222.30 | 41.10 | 61.90 | 12.70 | 260.30 | 12 | 25.40 | 330.20 | 24.10 |
| 10 | 273.00 | 444.50 | 277.40 | 47.70 | 95.20 | 12.70 | 320.50 | 16 | 28.40 | 387.30 | 34.40 |
| 12 | 323.80 | 520.70 | 328.20 | 50.80 | 101.60 | 12.70 | 374.60 | 16 | 31.70 | 450.80 | 50.40 |
| 14 | 355.60 | 584.20 | 360.20 | 53.80 | 111.20 | 12.70 | 425.40 | 20 | 31.70 | 514.3 | 70.90 |
| 16 | 406.40 | 647.70 | 411.20 | 57.15 | 120.60 | 12.70 | 482.60 | 20 | 35.00 | 571.50 | 89.50 |
| 18 | 457.20 | 711.20 | 462.30 | 60.45 | 130.00 | 12.70 | 533.40 | 24 | 35.00 | 628.60 | 111.00 |
| 20 | 508.00 | 774.70 | 514.40 | 63.50 | 139.70 | 12.70 | 587.20 | 24 | 35.00 | 685.80 | 137.00 |
| 24 | 609.60 | 914.40 | 616.00 | 69.80 | 152.40 | 12.70 | 701.50 | 24 | 41.10 | 812.80 | 204.00 |
Kelas 400 lb
| Nomdi dalamal Ukuran pipa | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Flens Ketebalan | Keseluruhan Panjang | Pangkuan Radius | Pusat Diameter | Nomor lubang | Lubang baut Diameter | Diameter lingkaran lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | Hmm) | I (mm) | J (mm) | kg/ potong |
| ½ | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| 1 ¼ | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| 1 ½ | 48.30 | 155.40 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 254.00 | 116.80 | 35.10 | 50.80 | 11.20 | 146.10 | 8 | 25.40 | 200.20 | 10.90 |
| 5 | 141.30 | 279.40 | 114.50 | 38.10 | 53.80 | 11.20 | 177.80 | 8 | 25.40 | 235.00 | 13.70 |
| 6 | 168.30 | 317.50 | 171.50 | 41.10 | 57.15 | 12.70 | 206.20 | 12 | 25.40 | 269.70 | 18.00 |
| 8 | 219.10 | 381.00 | 222.30 | 47.80 | 68.30 | 12.70 | 260.40 | 12 | 28.40 | 330.20 | 28.30 |
| 10 | 273.00 | 445.00 | 277.40 | 53.80 | 101.60 | 12.70 | 320.50 | 16 | 31.75 | 387.40 | 38.80 |
| 12 | 323.80 | 520.70 | 328.20 | 57.15 | 108.00 | 12.70 | 374.70 | 16 | 35.10 | 450.90 | 56.60 |
| 14 | 355.60 | 584.20 | 360.2 | 60.45 | 117.30 | 12.70 | 425.50 | 20 | 35.10 | 514.40 | 78.60 |
| 16 | 406.40 | 647.70 | 411.20 | 63.50 | 127.00 | 12.70 | 482.60 | 20 | 38.10 | 571.50 | 100.00 |
| 18 | 457.20 | 711.20 | 462.30 | 66.55 | 136.70 | 12.70 | 533.40 | 24 | 38.10 | 628.70 | 122.00 |
| 20 | 508.00 | 774.70 | 514.40 | 69.85 | 146.10 | 12.70 | 587.20 | 24 | 41.10 | 685.80 | 145.00 |
| 24 | 609.60 | 914.40 | 616.00 | 76.20 | 158.80 | 12.70 | 701.50 | 24 | 47.80 | 812.80 | 217.00 |
Kelas 600 lb
| Nominal Ukuran pipa | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Flens Ketebalan | Keseluruhan Panjang | Pangkuan Radius | Pusat Diameter | Nomor lubang | Lubang baut Diameter | Diameter lingkaran lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | Hmm) | I (mm) | J (mm) | kg/ potong |
| ½ | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| 1 ¼ | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| 1 ½ | 48.30 | 155.4 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 273.10 | 116.80 | 38.10 | 53.80 | 11.20 | 152.40 | 8 | 25.40 | 215.9 | 14.40 |
| 5 | 141.30 | 330.20 | 114.50 | 44.50 | 60.45 | 11.20 | 189.00 | 8 | 28.40 | 266.70 | 24.30 |
| 6 | 168.30 | 355.60 | 171.50 | 47.80 | 66.55 | 12.70 | 222.30 | 12 | 28.40 | 292.10 | 28.50 |
| 8 | 219.10 | 419.10 | 222.30 | 55.60 | 76.20 | 12.70 | 273.10 | 12 | 31.75 | 349.30 | 43.10 |
| 10 | 273.00 | 508.00 | 277.40 | 63.50 | 111.30 | 12.70 | 342.90 | 16 | 35.10 | 431.80 | 70.50 |
| 12 | 323.80 | 558.80 | 328.20 | 66.55 | 117.30 | 12.70 | 400.10 | 20 | 35.10 | 489.00 | 86.10 |
| 14 | 355.60 | 603.30 | 360.20 | 69.85 | 127.00 | 12.70 | 431.80 | 20 | 38.10 | 527.10 | 100.00 |
| 16 | 406.40 | 685.80 | 411.20 | 76.20 | 139.70 | 12.70 | 495.30 | 20 | 41.10 | 603.30 | 145.00 |
| 18 | 457.20 | 743.00 | 462.30 | 82.60 | 152.40 | 12.70 | 546.10 | 20 | 44.50 | 654.10 | 177.00 |
| 20 | 508.00 | 812.80 | 514.40 | 88.90 | 165.10 | 12.70 | 609.60 | 24 | 44.50 | 723.90 | 225.00 |
| 24 | 609.60 | 939.80 | 616.00 | 101.60 | 184.20 | 12.70 | 717.60 | 24 | 50.80 | 838.20 | 318.00 |
Kelas 900 lb
| Nominal Ukuran pipa | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Flens Ketebalan | Keseluruhan Panjang | Pangkuan Radius | Pusat Diameter | Nomor lubang | Lubang baut Diameter | Diameter lingkaran lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | Hmm) | I (mm) | J (mm) | kg/ potong |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| ¾ | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| 1 ¼ | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| 1 ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| 2 ½ | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 241.30 | 91.40 | 38.10 | 53.80 | 9.70 | 127.00 | 8 | 25.40 | 190.50 | 11.30 |
| 4 | 114.30 | 292.10 | 116.80 | 44.40 | 69.85 | 11.20 | 158.70 | 8 | 31.70 | 234.90 | 19.20 |
| 5 | 141.30 | 349.20 | 114.50 | 50.80 | 79.25 | 11.20 | 190.50 | 8 | 35.00 | 279.40 | 31.20 |
| 6 | 168.30 | 381.00 | 171.50 | 55.60 | 85.80 | 12.70 | 234.90 | 12 | 31.70 | 317.50 | 40.50 |
| 8 | 219.10 | 469.90 | 222.30 | 63.50 | 114.30 | 12.70 | 298.40 | 12 | 38.10 | 393.70 | 71.50 |
| 10 | 273.00 | 546.10 | 277.40 | 69.85 | 127.00 | 12.70 | 368.30 | 16 | 38.10 | 469.90 | 104.00 |
| 12 | 323.80 | 609.60 | 328.20 | 79.25 | 142.70 | 12.70 | 419.10 | 20 | 38.10 | 533.40 | 139.00 |
| 14 | 355.60 | 641.30 | 360.20 | 85.80 | 155.40 | 12.70 | 450.80 | 20 | 41.10 | 558.80 | 161.00 |
| 16 | 406.40 | 704.80 | 411.20 | 88.90 | 165.10 | 12.70 | 508.00 | 20 | 44.40 | 615.90 | 194.00 |
| 18 | 457.20 | 787.40 | 462.30 | 101.60 | 190.50 | 12.70 | 565.10 | 20 | 50.80 | 685.80 | 267.00 |
| 20 | 508.00 | 857.20 | 514.40 | 107.90 | 209.50 | 12.70 | 622.30 | 20 | 53.80 | 749.30 | 334.00 |
| 24 | 609.60 | 1041.40 | 616.00 | 139.70 | 266.70 | 12.70 | 749.30 | 20 | 66.55 | 901.70 | 618.00 |
Kelas 1500 lb
| Nominal Ukuran pipa | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Flens Ketebalan | Keseluruhan Panjang | Pangkuan Radius | Pusat Diameter | Nomor lubang | Lubang baut Diameter | Diameter lingkaran lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | Hmm) | I (mm) | J (mm) | kg/ potong |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| ¾ | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| 1 ¼ | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| 1 ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| 2 ½ | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 266.70 | 91.40 | 47.70 | 73.15 | 9.70 | 133.30 | 8 | 31.70 | 203.2 | 17.80 |
| 4 | 114.30 | 311.10 | 116.80 | 53.80 | 90.40 | 11.20 | 162.00 | 8 | 35.00 | 241.30 | 27.50 |
| 5 | 141.30 | 374.60 | 114.50 | 73.15 | 104.60 | 11.20 | 196.80 | 8 | 41.10 | 292.10 | 51.50 |
| 6 | 168.30 | 399.70 | 171.50 | 82.50 | 119.10 | 12.70 | 228.60 | 12 | 38.10 | 317.50 | 62.00 |
| 8 | 219.10 | 482.6 | 222.30 | 91.90 | 142.70 | 12.70 | 292.10 | 12 | 44.40 | 393.70 | 105.00 |
| 10 | 273.00 | 584.20 | 277.40 | 107.90 | 177.80 | 12.70 | 368.30 | 12 | 50.80 | 482.60 | 179.00 |
| 12 | 323.80 | 673.10 | 328.20 | 123.90 | 218.90 | 12.70 | 450.80 | 16 | 53.80 | 571.50 | 269.00 |
| 14 | 355.60 | 749.30 | 360.20 | 133.30 | 241.30 | 12.70 | 495.30 | 16 | 60.45 | 635.00 | 365.00 |
| 16 | 406.40 | 825.50 | 411.20 | 146.00 | 260.30 | 12.70 | 552.40 | 16 | 66.55 | 704.80 | 459.00 |
| 18 | 457.20 | 914.40 | 462.30 | 162.00 | 276.30 | 12.70 | 596.90 | 16 | 73.15 | 774.70 | 598.00 |
| 20 | 508.00 | 984.20 | 514.40 | 177.80 | 292.10 | 12.70 | 641.30 | 16 | 79.25 | 831.80 | 712.00 |
| 24 | 609.60 | 1168.40 | 616.00 | 203.20 | 330.20 | 12.70 | 726.00 | 16 | 91.90 | 990.60 | 1090.00 |
Kelas 2500 lb
| Nominal Ukuran pipa | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Flens Ketebalan | Keseluruhan Panjang | Pangkuan Radius | Pusat Diameter | Nomor lubang | Lubang baut Diameter | Diameter lingkaran lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | Hmm) | I (mm) | J (mm) | kg/ potong |
| ½ | 21.30 | 133.40 | 22.90 | 30.20 | 39.60 | 3.00 | 42.90 | 4 | 22.40 | 88.90 | 2.92 |
| ¾ | 26.70 | 139.70 | 28.20 | 31.75 | 42.90 | 3.00 | 50.80 | 4 | 22.40 | 95.30 | 3.40 |
| 1 | 33.40 | 158.80 | 35.10 | 35.10 | 47.80 | 3.00 | 57.15 | 4 | 25.40 | 108.00 | 4.77 |
| 1 ¼ | 42.20 | 184.20 | 43.70 | 38.10 | 52.30 | 4.80 | 73.15 | 4 | 28.40 | 130.00 | 7.08 |
| 1 ½ | 48.30 | 203.20 | 50.00 | 44.50 | 60.45 | 6.40 | 79.25 | 4 | 31.75 | 146.10 | 9.93 |
| 2 | 60.30 | 235.00 | 62.50 | 50.80 | 69.85 | 7.90 | 95.30 | 8 | 28.40 | 171.50 | 14.70 |
| 2 ½ | 73.00 | 266.70 | 75.40 | 57.15 | 79.25 | 7.90 | 114.30 | 8 | 31.75 | 196.90 | 21.30 |
| 3 | 88.90 | 304.80 | 91.40 | 66.55 | 91.90 | 9.70 | 133.40 | 8 | 35.10 | 228.60 | 32.30 |
| 4 | 114.30 | 355.60 | 116.80 | 76.20 | 108.00 | 11.20 | 165.10 | 8 | 41.10 | 273.10 | 52.50 |
| 5 | 141.30 | 419.10 | 114.50 | 91.90 | 130.00 | 11.20 | 203.20 | 8 | 47.80 | 323.90 | 82.60 |
| 6 | 168.30 | 482.60 | 171.50 | 108.00 | 152.40 | 12.70 | 235.00 | 8 | 53.80 | 368.30 | 127.00 |
| 8 | 219.10 | 552.50 | 222.30 | 127.00 | 177.80 | 12.70 | 304.80 | 12 | 53.80 | 438.20 | 186.00 |
| 10 | 273.00 | 367.10 | 277.40 | 165.10 | 228.60 | 12.70 | 374.70 | 12 | 66.55 | 539.80 | 352.00 |
| 12 | 323.80 | 762.00 | 328.20 | 184.20 | 254.00 | 12.70 | 441.50 | 12 | 73.15 | 619.30 | 501.00 |
Didirikan pada tahun 2007 dan pindah ke Longyou Economic Development Zone, Provinsi Zhejiang, pada tahun 2022. Ini mencakup area seluas 130.000 meter persegi, lebih dari 30 lini produksi, 300 pekerja, 20 orang R&D, 30 orang inspeksi dan output tahunan 50.000 ton.
Telah lulus ISO9001: 2008 Sistem Manajemen Kualitas, PED 97/23/EC EU PRESSECH PRESSECH PEKERJAAN, LIEN LISE PRSEAL PRESIFIKASI KHUSUS KHUSUS (TUBA TEST) TS, Sertifikasi ASME, Sistem Manajemen Lingkungan, dan Sistem Lapangan Perusahaan (Cleafcy Enterprise), dan serangkaian serangkaian pelepasan, dan serangkaian serangkaian serangkaian pelepasan, juga serangkaian serangkaian serangkaian serangkaian, juga serangkaian serangkaian serangkaian serangkaian Lingkungan, juga serangkaian sertifikat, juga serangkaian sertifikat, juga serangkaian sertifikat, juga serangkaian serangkaian sertifikat, juga serangkaian sertifikat, juga serangkaian serangkaian serangkaian sertifikat, (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), dan Sertifikasi Pabrik Daftar Pengiriman Korea (KR).
Produk utama termasuk pipa stainless steel, alat kelengkapan pipa, flensa, katup, dll., Yang banyak digunakan dalam minyak bumi, industri kimia, industri nuklir, peleburan, pembuatan kapal, obat -obatan, makanan, konservasi air, tenaga listrik, energi baru, peralatan mekanis, dan medan lainnya. Perusahaan mematuhi prinsip perusahaan "Kualitas untuk Bertahan Hidup, Reputasi untuk Pembangunan" dan dengan sepenuh hati melayani setiap pelanggan untuk menciptakan situasi yang saling menguntungkan.
Baja adalah bahan penting di berbagai industri, dengan berbagai jenis yang melayani aplikasi tertentu. Diantaranya, Baja Ringan dan Baja Karbon adalah dua bentuk yang paling umum digunakan. Meskipu...
Lihat lebih banyakKami dengan senang hati merenungkan partisipasi kami yang sukses dalam 2025 Xinjiang Petroleum dan Chemical Industry Expo, yang diadakan dari 4-6 September di Xinjiang International Convention and ...
Lihat lebih banyakPerkenalan Tabung baja stainless steel adalah komponen penting dalam industri di mana cairan atau gas harus disimpan, diangkut, atau diproses di bawah tekanan tinggi. Dari pembangkit kimia dan f...
Lihat lebih banyakKami tidak akan pernah membagikan alamat email Anda dan Anda
Dapat memilih keluar kapan saja, kami berjanji.
Mengkhususkan diri dalam produksi stainless
Steel Pipe
No.188 Binkang Road, Xixing Street, Distrik Binjiang, Kota Hangzhou, Provinsi Zhejiang, Cina
+86 18969027607
sales@xhxmat.com
Copyright © Xinhang Special Material Co, Ltd Cabang Hangzhou Rights Reserved.
