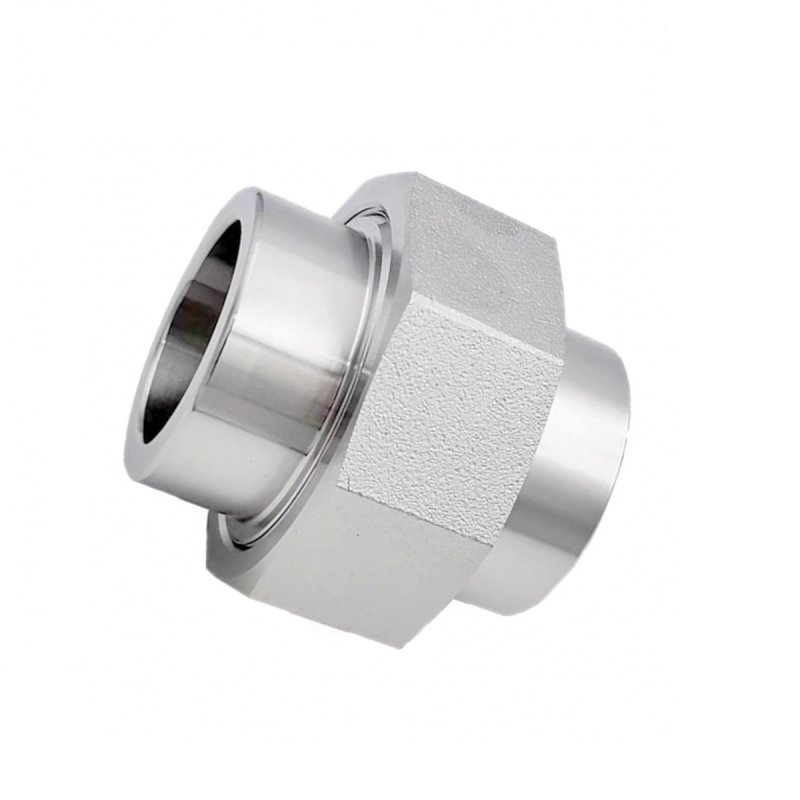

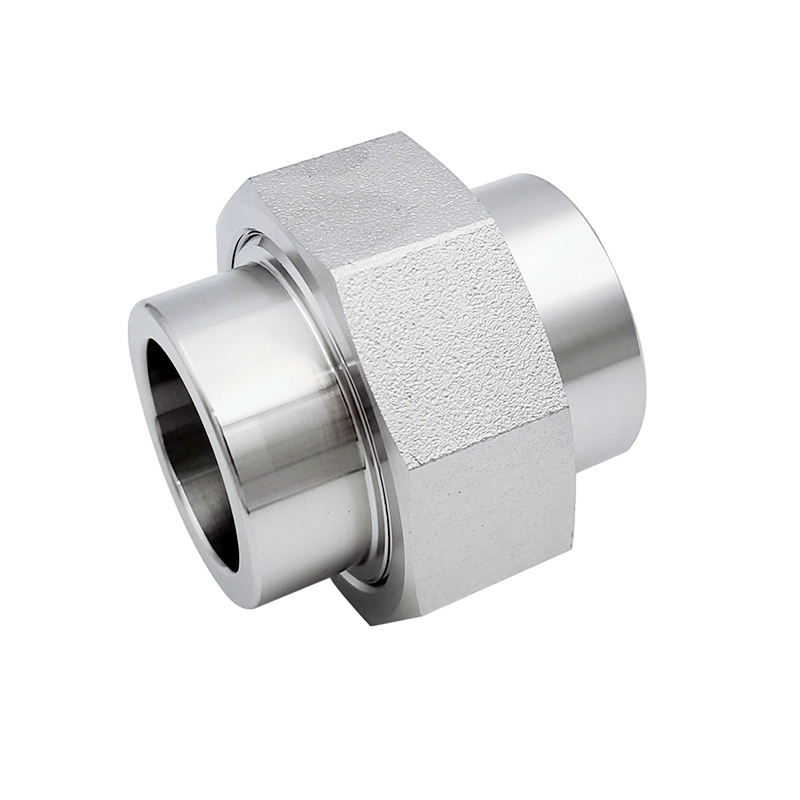

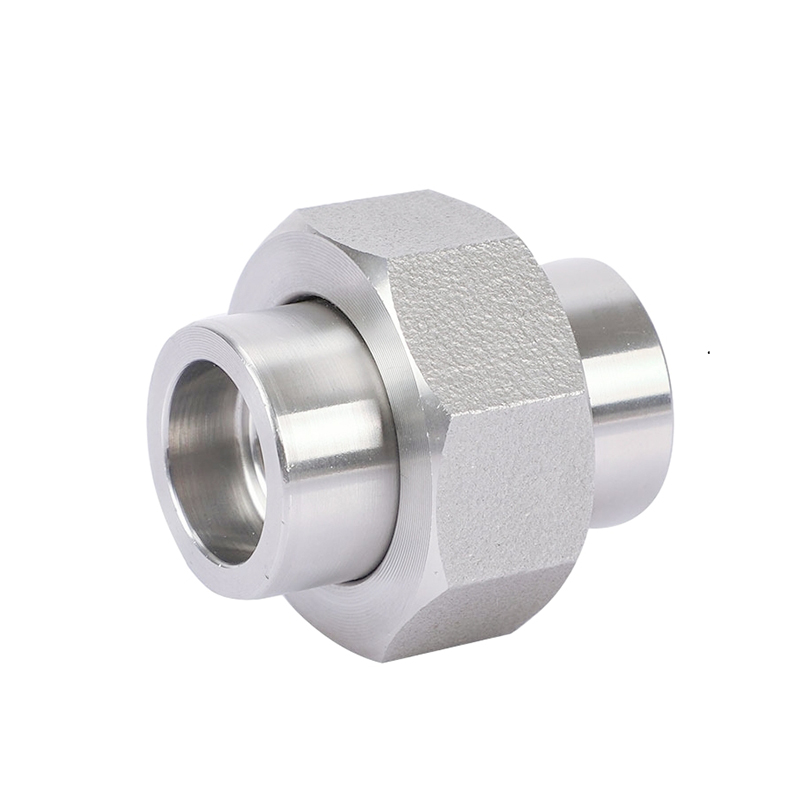

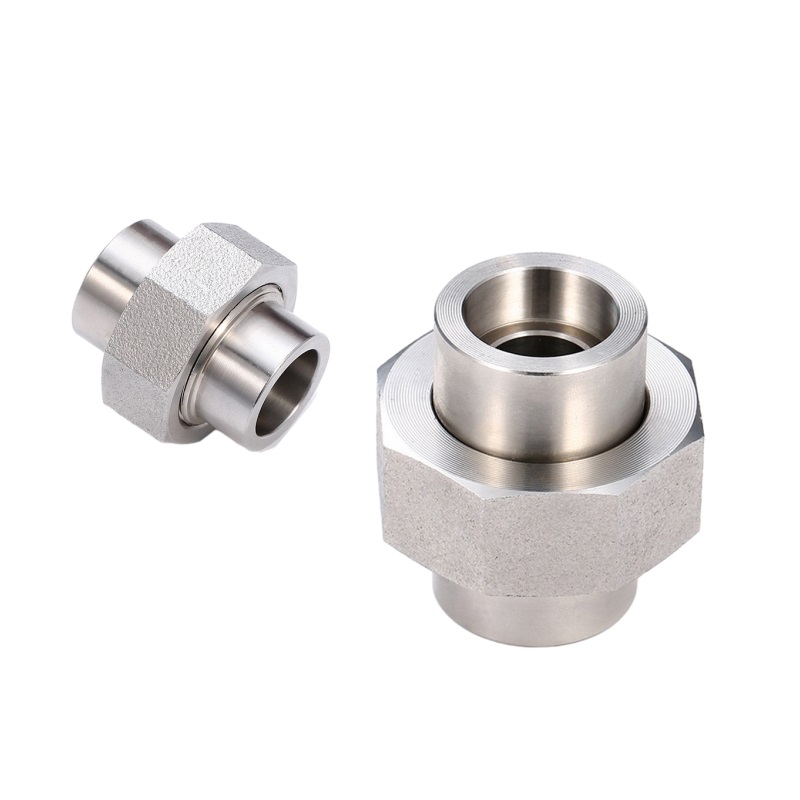

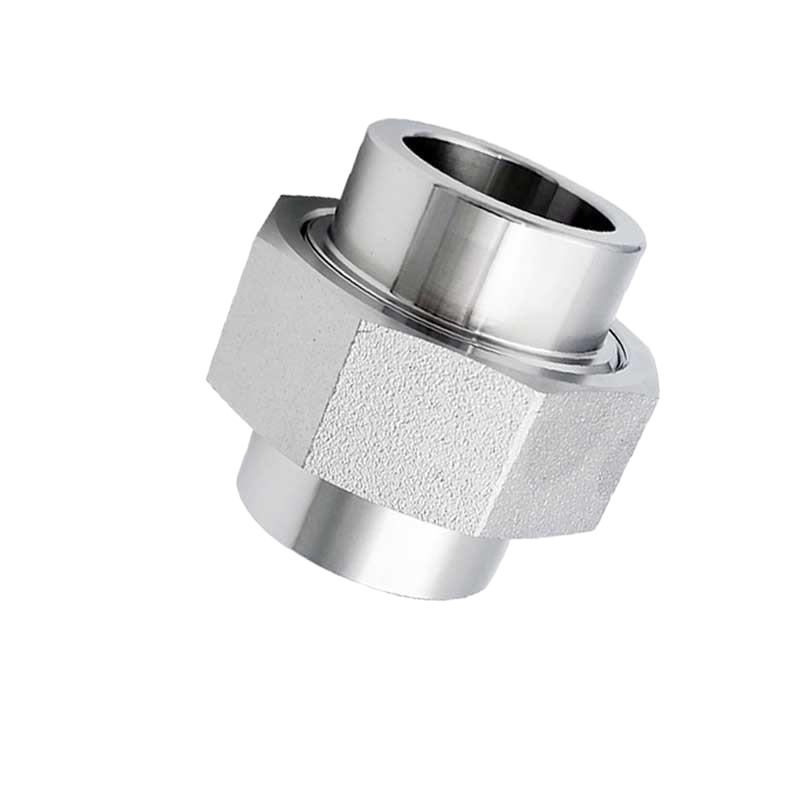

Union stainless steel bertekanan rendah dengan fitting pipa berulir NPT

Barang

Union stainless steel

Standar

3A, DIN, SMS, IDF, BPE, BS, ISO

Bahan

Baja tahan karat

Permukaan

Mesin CNC

Jenis

Investasi Casting Foundry- Wax Lost Technology

ukuran

1/8 "-3"

Waktu pengiriman

Dalam 5-30 hari setelah menerima prabayar

Sedang mengemas

Kecil Wrapper- Carton-Plywood Case

Aplikasi

Makanan, minuman, bahan kimia, apotek, bioteknologi, kosmetik, dan industri lainnya di bidang sistem perpipaan stainless steel

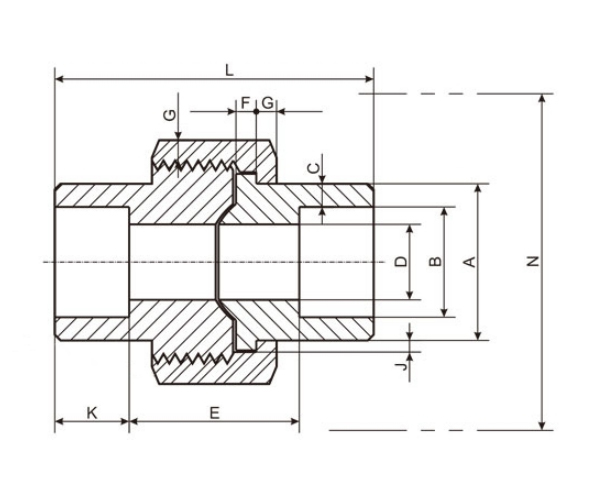

NPS

Ukuran

A

B

C

D (maks)

D (min)

k

E

F

G

J (min)

L

N

1/8 "

6

14.7

9.88

2.41

8.43

6.34

9.5

22.4

3.18

3.18

1.24

41.4

50.8

1/4 "

8

19

12.96

3.02

11.13

9.45

9.5

22.4

3.18

3.18

1.24

41.4

50.8

3/8 "

10

22.9

16.5

3.2

14.27

13.51

9.5

27

3.43

3.43

1.37

46

55.9

1/2 "

15

27.7

20.24

3.73

17.86

17.07

9.5

30

3.68

3.68

1.5

49

58.4

3/4 "

20

33.5

25.68

3.91

23.01

21.39

12.5

31.9

4.06

4.06

1.68

56.9

66

1 "

25

41.4

32.3

4.55

28.98

27.74

12.5

37

4.57

4.45

1.85

62

78.7

1 1/4 "

32

50.5

40.8

4.85

37.69

35.36

12.5

46.1

5.33

5.21

2.13

71.1

94

1 1/2 "

40

57.2

47.04

5.08

43.54

41.2

12.5

51.5

5.84

5.59

2.31

76.5

111.8

2 "

50

70.1

59.02

5.54

55.58

52.12

16

54.1

6.60

6.35

2.69

86.1

132.1

2 1/2 "

65

85.3

71.28

7.01

66.27

64.31

16

70.4

7.49

7.11

3.07

102.4

149.9

3 "

80

102.4

887.16

7.62

88.25

77.27

16

77

8.26

8.00

3.53

109

175.3
